SPECIFICATIONS

Brand Name: NoEnName_Null

Certification: CE

Certification: FCC

Certification: RoHS

Detection Range: 10m

Origin: Mainland China

Detection Angle: 120

Hign-concerned Chemical: None

Model Number: human presence sensor

Choice: yes

semi_Choice: yes

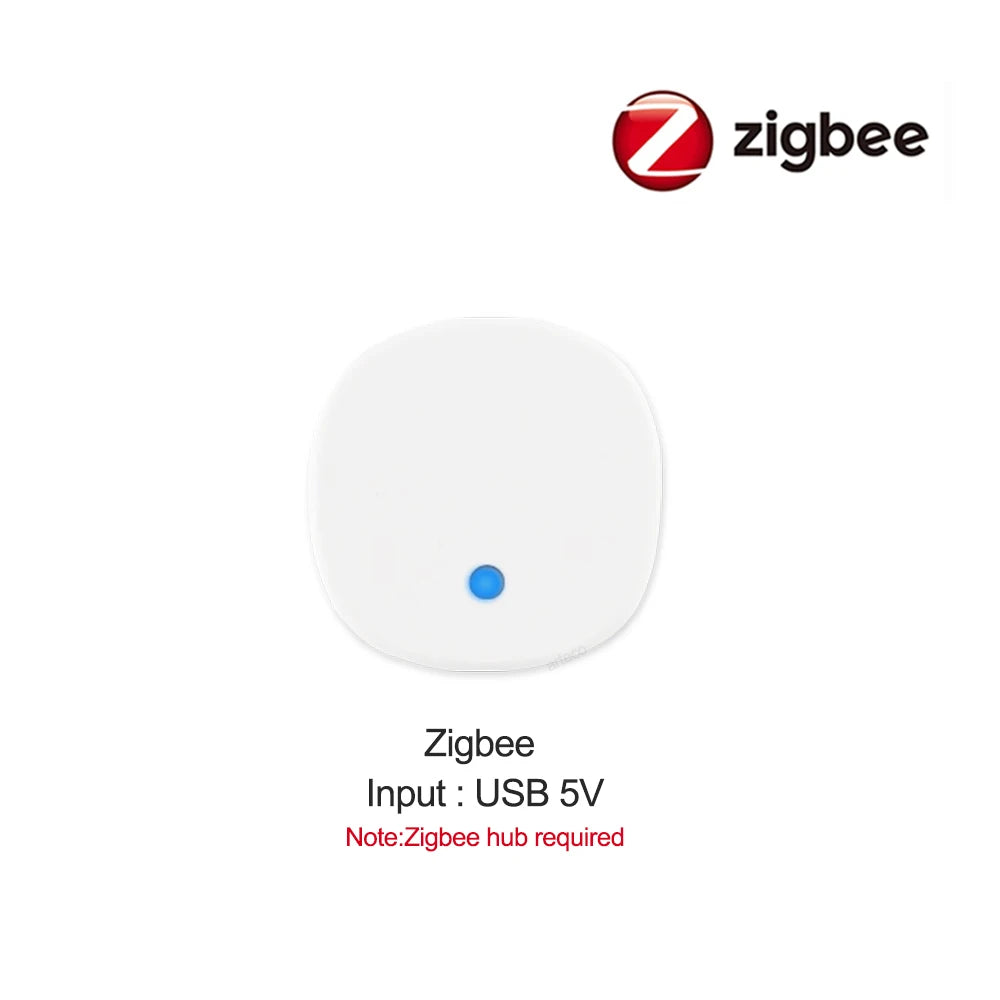

Zigbee version need TUYA Zigbee Hub to operate.

Do not work on home assistant!!

If you need to use this product on Zigbee 2mqtt, please download the JS file from the following link.

 (https://github.com/ExcelluxZ2MZHA/Excellux-ZigBee2mqtt )

If you do not have zigbee bridge ,just purchase wifi type .

Specifications:
Network: ZigBee / Wifi.
Radar: 5.8G Radar
Input: USB Type-C DC 5V 1A.
Working temperature: -10℃~+40℃
Sensitivity: 10-100%(default 80%)
Detection Range: 1-10m(Default 6m)
Illuminance Sensor: 0-9999.9 LUX(relative value).
Entry Filter Time:0.05S-0.5S(Default 0.1S)
Departure Delay: 5S-120Min(Default 5S).
Beam Angle: 120*120°(5.8G)
Sensor Size: 48x48x20mm / 1.89*1.89*0.79in
Bracket Size: φ40mm*H36mm / φ1.57in*1.42in

Bracket: Magnetic adsorption base (Optional)

Features:

No holder version: The sensor has a magnetic attraction function, which can directly magnetically attract iron or use double-sided tape to stick it directly to the position where it needs to be installed;
Version with bracket: The sensor is magnetically attached to the bracket and then bonded to the desired area using double-sided tape. For example, on a wall or ceiling. The bracket allows for angle adjustment.
(Note: The back of the sensor has magnetism and the bracket has metal. Therefore, the magnetic attraction function is achieved.)

Multi-Functional Smart Human Presence Sensor:

The Micro motion sensor can be widely used in lighing,security,home appliance.hotels,garages,buildings.transportation.LOT internet of things and other industries that need to detect human micro motion,motion and control detection distance

High precision Smart Human Presence Detector:the human presence sensor adopts millimeter wave radar,sensing human movement and static presence.It can detect the tiniest movement,even breathing and heatbeat.It can not only be used to detect moving,but also non-moving people.it enables seamless background features,like the litchen light turns on once you enter the room and off once you leave.

Newly updated debug mode.
The debug mode is used to find the most suitable detection distance.This helps to eliminate sources of interference.

Home Security :With human presence detection,you can used to detect intruders,whether it's in your personal home,an office or retail setting or even an industrial environment.

Newly updated Range Report Mode settings:Setting it to "report at trigger" can reduce reporting logs. This will not cause network congestion for ZigBee2mqtt.Compared to other sensors present in the human body, it may be more friendly to the ZigBee network.

Setting it to "report at trigger" can reduce reporting logs. This will not cause network congestion for ZigBee2mqtt.Compared to other sensors present in the human body, it may be more friendly to the ZigBee network.

APP Remote Control:Upgraded new app interface with multiple setting function .It detect micro/macro motions enables you to detect human presence within a configured distance.and get alerts in real time via app.

History Record View:User can check the history record via app.

Functions:Luminance/Distance/Logging date/Smart Linkage etc.

ZigBee Hub needed:Tuya ZigBee gateway is required for ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.Compare with other similar type presence sensor ,this presence sensor came with more precision parameter setting on app;Please learn the related meaning first before you use it ;Any question ,contact seller ;Thank you .

Adjustable Parameters
Various parameters such as detection distance can be set through app.
1.Detection shield:The closest detectable distance for the target.
2.Detection range:The farthest detectable distance for the target.
3.Trigger distance:The distance at which a sensor is triggered in an 'unoccupied' state.
4.Maintain sensitivity:The sensitivity for continuous detection of targets in an 'occupied' state.
5.Trigger sensitiveity: The sensitivity of triggering the sensor in an 'unoccupied' state.
6.Departure delay:After the target disappears, the delay in reporting the 'unoccupied' state.
7.Entry filter time:The time it takes to confirm and report the "occupied" state after a target is detected.
8.Block time:After transitioning from an "occupied" to an "unoccupied" state, the sensor does not detect targets during the lockout period.
9.Status indication:Indicator Light Switch.
10.Sensor:Sensor's Operational Status.
11.Range reprot mode:Target Distance Reporting Mode.

Newly updated debug mode.
The debug mode is used to find the most suitable detection distance.This helps to eliminate sources of interference.
Newly updated Range Report Mode settings.
Setting it to "report at trigger" can reduce reporting logs. This will not cause network congestion for ZigBee2mqtt.Compared to other sensors present in the human body, it may be more friendly to the ZigBee network.

Newly updated Magnetic function (optional)

1. The sensor can directly magnetically attract iron. For example, iron table corners, iron frames, and steel beams. You can also use double-sided tape to stand anywhere you need to install it

2. The sensor bracket has magnetic suction function and needs to be glued to the required area with double-sided tape. For example, on a wall or ceiling. The bracket allows for angle adjustment

3. With bracket, without bracket，optional
